MTI0133仪表放大器可替代INA133

Description
The MTI0133 is a precision unity-gain difference
The MTI0133 is a high slew rate, unity gain
difference amplifier consisting of a precision op
amp with a precision resistor network. The onchip resistors are laser trimmed for accurate
gain and high common-mode rejection.
Excellent TCR tracking of the resistors
maintains gain accuracy and common-mode
rejection over temperature. They operate over a
wide supply range, ±2.25V to ±17V (+4.5V to
+34V single supply), and input common-mode
voltage range extends beyond the positive and
negative supply rails.
The differential amplifier is the foundation of
many commonly used circuits. The low cost
MTI0133 provides this precision circuit function
without using an expensive precision network.

Features
 Offset voltage: ±450µV (max)
 Offset drift: ±5µV/°C (max)
 Gain error: ±0.05% (max)
 Bandwidth: 1.5MHz
 Slew Rate: 5V/µs
 Supply Range: 4.5V to 34V
 Quiescent current: 950µA

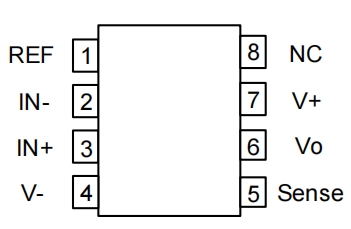

 Package: SOP-8
Applications
 Diff IN/Diff OUT Amplifier
 Unity-Gain Inverting Amplifier
 Summing Amplifier
 Synchronous Demodulator
 Battery Powered Systems
 Low Cost Automotive
 Current/Differential Line Receiver
